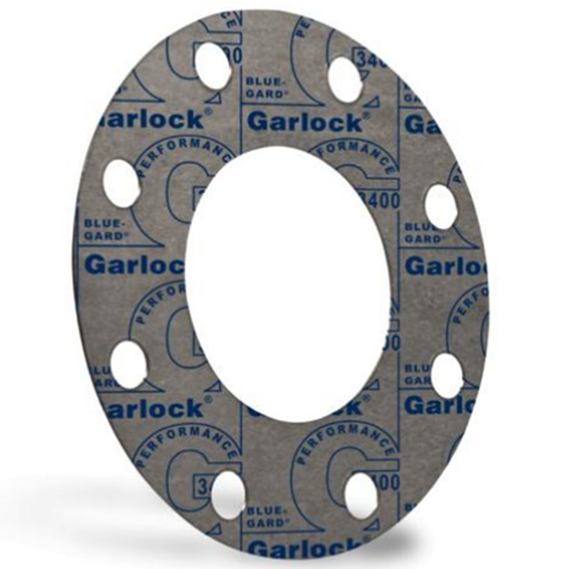

Garlock Compressed Asbestos-Free Gaskets

Garlock’s line of compressed non-asbestos (CNAF) gasket materials delivers dependable sealing performance for demanding industrial applications. Made from engineered fibers and elastomer binders, these asbestos-free materials provide excellent torque retention, chemical resistance, and long-term reliability. Ideal for steam, water, oil, and chemical processing systems, Garlock CNAF materials help reduce emissions, extend service life, and lower total operating costs.

At Southern Rubber Company (SRC), we precision-cut Garlock CNAF materials in-house to your exact size, thickness, and configuration. From standard flange gaskets to complex custom profiles, SRC provides high-performance sealing solutions tailored to your specific operating conditions.

Garlock Logo

Material Number	Description	Datasheet
BLUE-GARD® 3000	The BLUE-GARD® 3000 sheet is a compressed non-asbestos gasket material formulated with aramid fibers and a nitrile binder.	BLUE-GARD® 3000 Datasheet
BLUE-GARD® 3200	The BLUE-GARD® 3200 compressed fiber gasket is manufactured with aramid fibers and an SBR (styrene-butadiene rubber) binder, offering dependable performance in water, mild chemicals, and general industrial service.	BLUE-GARD® 3200 Datasheet
BLUE-GARD® 3300	The BLUE-GARD® 3300 compressed non-asbestos gasket sheet combines aramid fibers with a neoprene binder for excellent resistance to oils, fuels, and solvents.	BLUE-GARD® 3300 Datasheet
BLUE-GARD® 3400	The BLUE-GARD® 3400 compressed fiber gasket is built with aramid fibers and an SBR binder, making it an excellent choice for sealing water, steam, and mild chemical applications.	BLUE-GARD® 3400 Datasheet
BLUE-GARD® 3700	The BLUE-GARD® 3700 compressed fiber gasket combines aramid fibers with a EPDM binder, delivering reliable sealing performance in water, saturated steam, and mild chemicals.	BLUE-GARD® 3700 Datasheet

Frequently Asked Questions: Garlock Compressed Asbestos-Free Gaskets

What are Garlock compressed asbestos-free (CNAF) gaskets?

Garlock CNAF gaskets are sheet materials made from aramid or carbon fibers bound with elastomeric binders (such as NBR, SBR, EPDM, or neoprene). They are designed to replace legacy asbestos gaskets, providing reliable sealing performance in water, steam, oils, fuels, and a wide range of industrial chemicals.

How do Garlock CNAF gaskets compare to traditional asbestos gaskets?

Garlock CNAF gaskets deliver equal or better sealing performance without the health and environmental risks of asbestos. They offer improved torque retention, lower fugitive emissions, and longer service life under high temperature and pressure conditions.

Which industries commonly use Garlock CNAF gaskets?

These gaskets are widely used in power generation, chemical processing, oil and gas, pulp and paper, food and beverage, and general manufacturing. Their versatility makes them suitable for both OEM equipment and MRO (maintenance, repair, and operations) applications.

What temperature and pressure ranges can Garlock CNAF gaskets handle?

Performance depends on the specific grade:

Blue-Gard® series (3000–3700): up to ~650°F (343°C) and 1500 psi (103 bar).
9800 / 9850 / 9900 series: engineered for higher temperature and steam service, exceeding 700°F (371°C) with excellent chemical resistance.

Always consult Garlock pressure-temperature (P×T) charts for application-specific limits.

What binders are available in Garlock CNAF materials?

Depending on the style, Garlock CNAF sheets are reinforced with elastomer binders such as NBR (nitrile), SBR, EPDM, and neoprene to optimize performance in oils, fuels, water, steam, and refrigerants.

Are Garlock CNAF gaskets environmentally compliant?

Yes. Garlock CNAF gaskets are asbestos-free, meet environmental safety regulations, and many styles support low-emission requirements for compliance with EPA, ISO 15848, and TA-Luft standards.

How do I choose the right Garlock CNAF gasket for my application?

Selection depends on media type, temperature, pressure, and flange conditions. For oil and fuel service, Blue-Gard 3300 (NBR) is ideal. For water and steam, Blue-Gard 3400 (EPDM) works well. For higher temperatures or steam service, Garlock 9800 or 9900 may be recommended.
